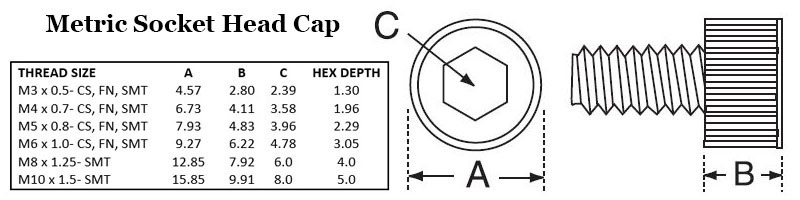

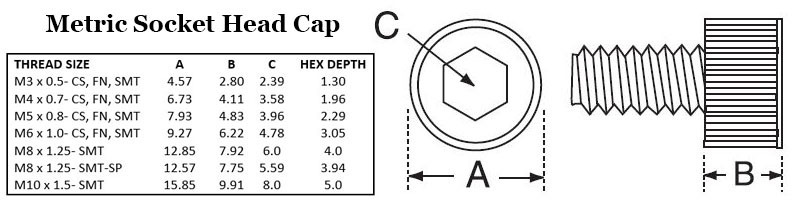

Metric socket head cap head styles can come in Smooth (SMT), Fine (FN), and Coarse (CS). See table above for current head styles.
| Item | Description | Qty.* | |
|---|---|---|---|
| SC-M03-005-05-SHC | M3 X 0.5 X 5MM | ||
| SC-M03-005-06-SHC | M3 X 0.5 X 6MM | ||
| SC-M03-005-08-SHC | M3 X 0.5 X 8MM | ||
| SC-M03-005-13-SHC | M3 X 0.5 X 13MM | ||
| SC-M04-007-04-SHC | M4 X 0.7 X 4MM | ||
| SC-M04-007-05-SHC | M4 X 0.7 X 5MM | ||
| SC-M04-007-06-SHC | M4 X 0.7 X 6MM | ||
| SC-M04-007-08-SHC | M4 X 0.7 X 8MM | ||
| SC-M04-007-10-SHC | M4 X 0.7 X 10MM | ||
| SC-M04-007-12-SHC | M4 X 0.7 X 12MM | ||
| SC-M04-007-14-SHC | M4 X 0.7 X 14MM | ||
| SC-M04-007-16-SHC | M4 X 0.7 X 16MM | ||
| SC-M05-008-08-SHC | M5 X 0.8 X 8MM | ||
| SC-M05-008-10-SHC | M5 X 0.8 X 10MM | ||
| SC-M05-008-12-SHC | M5 X 0.8 X 12MM | ||
| SC-M05-008-20-SHC | M5 X 0.8 X 20MM | ||
| SC-M05-008-25-SHC | M5 X 0.8 X 25MM | ||
| SC-M05-008-40-SHC | M5 X 0.8 X 40MM | ||
| SC-M06-100-08-SHC | M6 X 1.0 X 8MM | ||
| SC-M06-100-12-SHC | M6 X 1.0 X 12MM | ||
| SC-M06-100-17-SHC | M6 X 1.0 X 17MM | ||
| SC-M06-100-20-SHC | M6 X 1.0 X 20MM | ||
| SC-M06-100-25-SHC | M6 X 1.0 X 25MM | ||
| SC-M06-100-30-SHC | M6 X 1.0 X 30MM | ||
| SC-M08-125-55-SHC | M8 X 1.25 X 55MM | ||
| SC-M03-005-04-SHC | M3 X 0.5 X 4MM | ||
| SC-M03-005-10-SHC | M3 X 0.5 X 10MM | ||
| SC-M06-100-10-SHC | M6 X 1.0 X 10MM | ||
| SC-M06-100-10-SHC | M6 X 1.0 X 10MM | ||
| SC-M05-008-30-SHC | M5 X 0.8 X 30MM | ||
| SC-M10-150-30-SHC | M10 X 1.5 X 30MM | ||
| SC-M08-125-20-SHC | M8 X 1.25 X 20MM | ||
| SC-M08-125-30-SHC | M8 X 1.25 X 30MM |
